Image Processing API

Hero screenshot of Image Processing API

Overview

A RESTful service that handles the full lifecycle of an image: upload, paginated listing, retrieval, moves between folders, and deletion; a suite of Pillow editing operations — resize, rotate, grayscale, blur, sharpen, brightness, and contrast; and transformer-based object detection that returns labelled bounding boxes with confidence scores, or the annotated image itself. Image bytes live on the filesystem while a SQLite catalogue tracks dimensions, format, and a content hash — so re-uploading identical bytes deduplicates to the existing record instead of writing a copy.

I built it to be more than a demo: it is rate-limited per endpoint, hardened against path traversal, logged, documented end-to-end (including ADRs that record key trade-offs), and deployable with a single Docker Compose command.

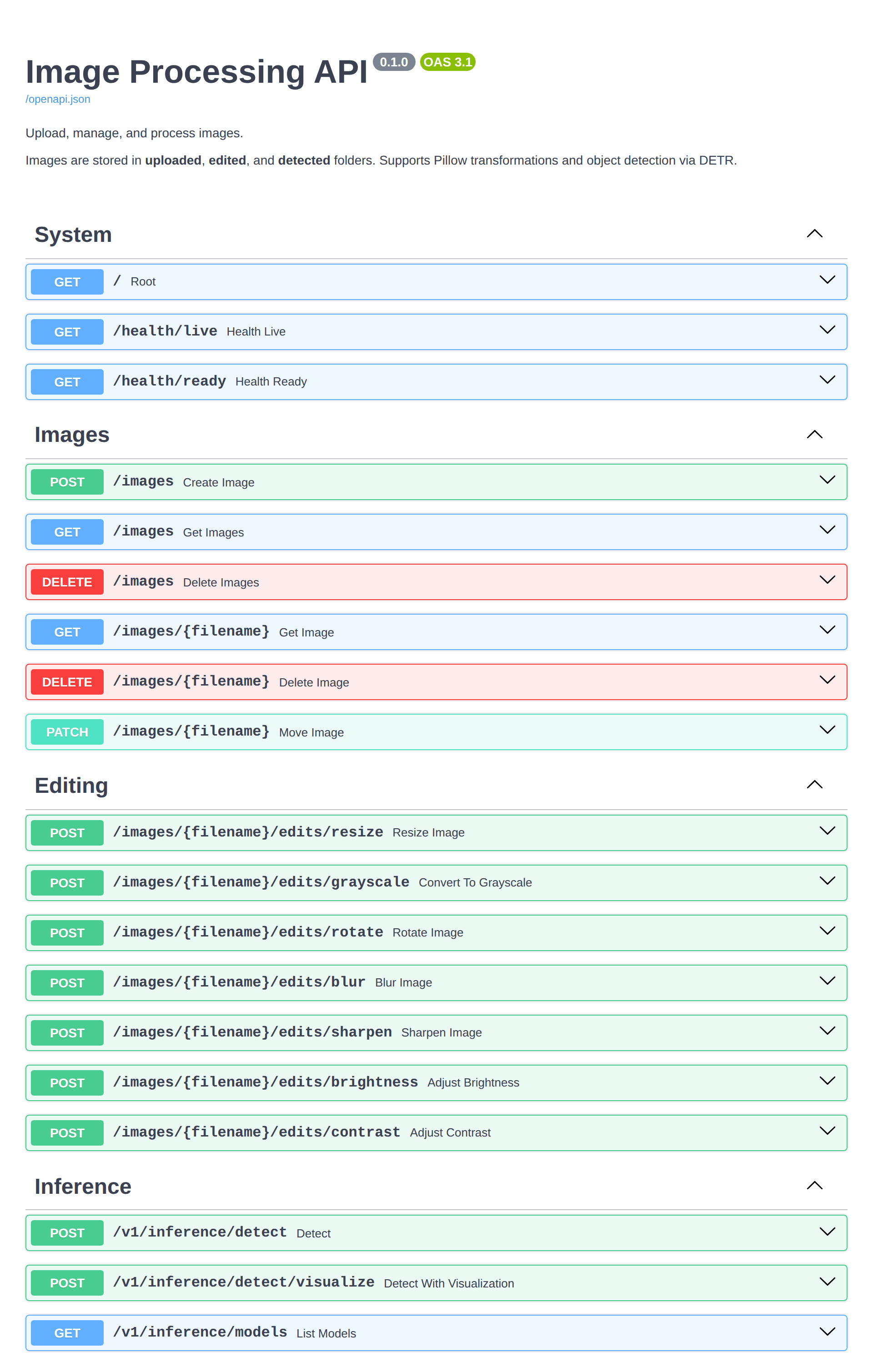

Interactive OpenAPI documentation at /docs, showing the media, editing, and vision endpoint groups

Architecture

The codebase is organised into three bounded contexts — media, editing, and vision — each with the same internal shape: an API layer of Pydantic request/response models and exception handlers, a domain layer of plain DTOs and errors deliberately free of FastAPI or ORM imports, and a service layer that orchestrates the work. Thin route handlers delegate to these services through FastAPI's dependency injection, and each context's domain exceptions map to HTTP status codes via registered handlers, keeping error semantics consistent across the API. Structured logging threads through every layer, so a request can be traced from route to service when something goes wrong.

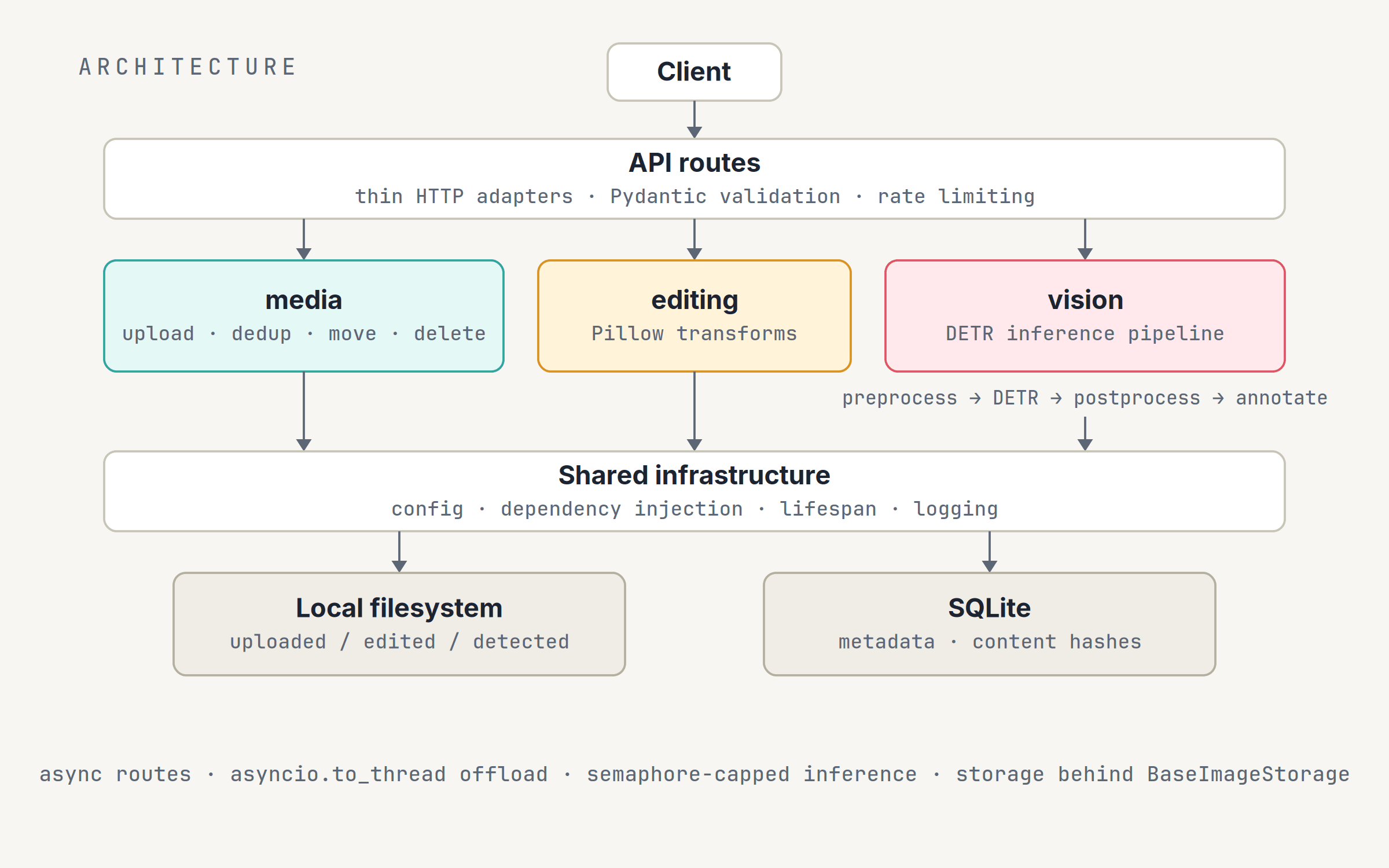

Architecture: routes delegate to the media, editing, and vision contexts, which sit on shared infrastructure backed by local filesystem storage and SQLite

Storage sits behind an abstract BaseImageStorage interface, so the local-disk backend could be swapped for cloud storage without touching business logic — a trade-off documented in an ADR alongside the migration path.

Serving DETR in production

Detection is powered by DETR (facebook/detr-resnet-50), an end-to-end transformer detection model with a ResNet-50 backbone, loaded through Hugging Face Transformers. Rather than bolting a model onto a web app, the service treats inference as an operational concern: the model loads once at startup with an optional warmup pass, readiness is exposed at /health/ready for container orchestration, and confidence threshold, maximum image dimension, and device are all configurable through environment settings. The documentation covers how to swap in a different detection model, from choosing one to tuning its confidence threshold.

Results come back as structured JSON — or as the annotated image shown at the top of this page:

{
  "detections": [
    { "label": "person",  "score": 0.98, "box": [412, 128, 590, 655] },
    { "label": "bicycle", "score": 0.94, "box": [95, 402, 388, 641] },
    { "label": "dog",     "score": 0.91, "box": [640, 460, 812, 638] }
  ],
  "model": "facebook/detr-resnet-50"
}

Performance & concurrency

Every route handler is asynchronous, and CPU-heavy work — Pillow transforms, filesystem I/O, and model inference — is pushed onto worker threads with asyncio.to_thread, so the event loop is never blocked. Because unbounded parallel inference would exhaust CPU and memory, detection runs behind an asyncio semaphore that caps concurrent forward passes, keeping latency predictable under load.

An original upload beside its edited output from the Pillow pipeline

Testing & delivery

149 tests across three tiers cover the service: a fast suite that mocks only the model weights while exercising real services, full-stack integration tests running against real SQLite and storage, and real-model inference smoke tests that download DETR and run on a nightly schedule. GitHub Actions runs linting (ruff), type checking (mypy), and the fast suite with an 80% coverage gate on every push — and the Docker build enforces the same gate, so an image cannot be produced from failing code. Compose configurations ship with named volumes and readiness health checks, and documentation includes a quickstart, full API reference, architecture overview, and deployment and troubleshooting guides.

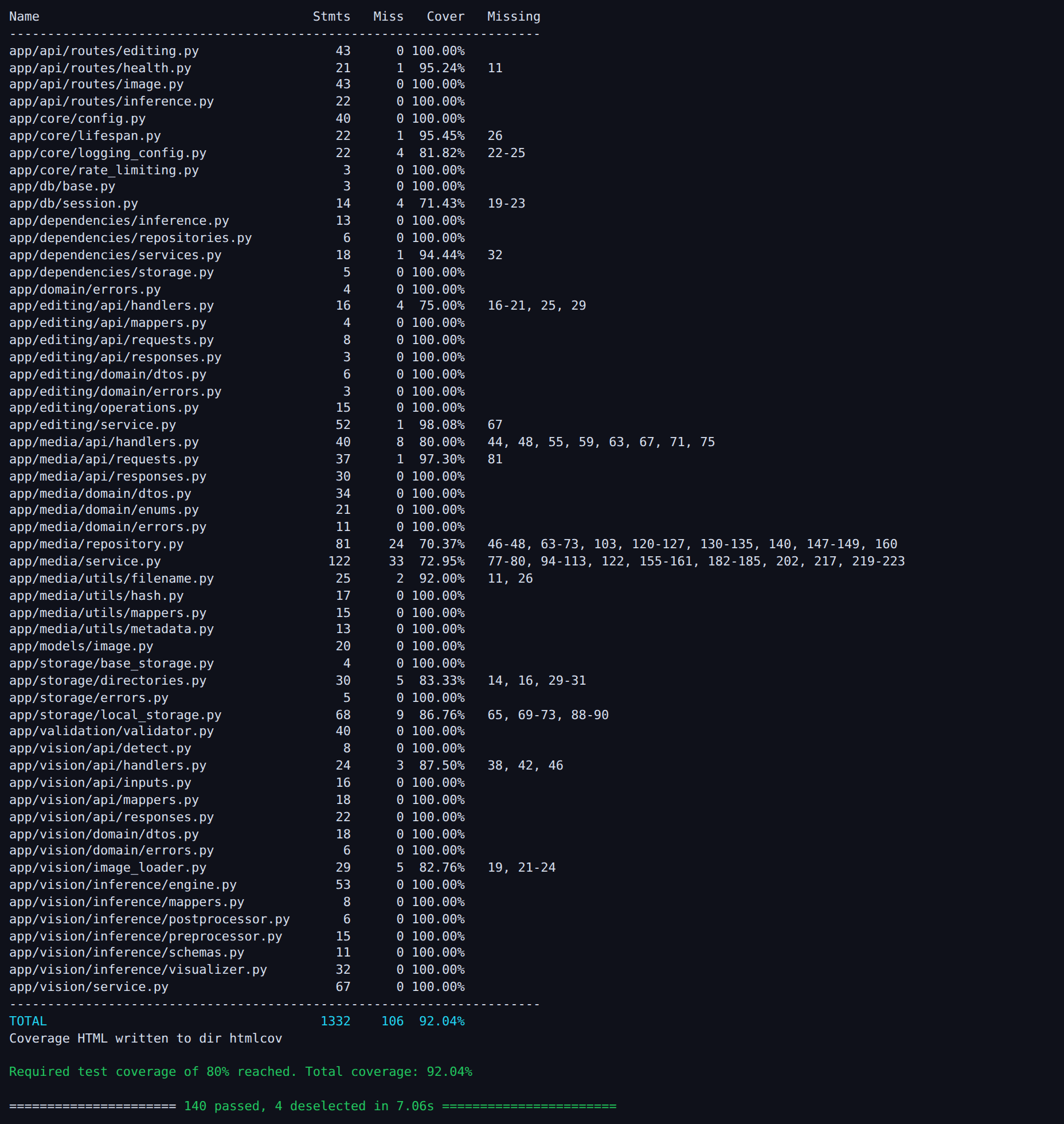

pytest run with the coverage report clearing the 80% gate
